Description
McGill ABWT PTFE Teflon Lined Series Bearings have 3 components; the ball, the liner and the outer race. The ball is inserted into the body and the body is then swaged around the ball to lock it in and it is then loosened to allow it to move. The body is made from Stainless Steel. These bearings are ideal for use in areas which require a tight fitted ball. These bearings are ideal for use in areas where the joint is constantly in motion as the liner insures the ball moves freely without any knocking or play being induced. These are commonly used in motorsport and on industrial equipment. These joints do not require lubrication.
BALL: CRES 440C Bearing Stainless Steel ~ Heat Treated
LINER: PTFE Teflon Liner between Ball and Body
BODY: Stainless Steel ~ Heat treated ~ Corrosion Resistance
EXCLUSIVE FEATURES: Ideal for Motorsport Applications ~ Teflon Lined
Brand: McGill Bearings
Measurement Unit: Imperial
Contact Material: Stainless Steel/PTFE
Bore: 19.05mm
Outside Dia (D): 1.375″
Ball Width: 0.875″
Housing Width: 0.63″

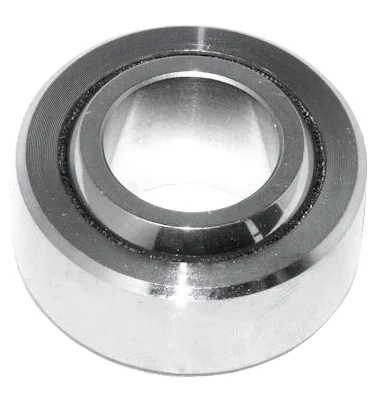

MRE_ABWT12 3/4″ Spherical Bearing Stainless Steel/PTFE – Chamfer Type. Also known as: MRE_ABWT12-1(R)
High Quality McGill Spherical Bearings manufactured from heat treated stainless steel with a teflon fabric liner suitable for Motorsport Applications.
- Race: Heat Treated Stainless Steel, CRES 410
- Ball: Heat Treated Stainless Steel, CRES 440C
- Liner: Teflon/Fabric bonded to race I.D.
Important Warning Notice: Please be aware that as the manufacturer is unable to determine which application a part will be used in, it’s the end users responsibility to determine if the part purchased is suitable for the intended use. Where safety is a factor incorrect application or installation may result in damaged property or injury or death.
MRE_ABWT12 Chamfer Type dimension chart – all dimensions in inches unless indicated.
To complement these Bearings, we have a range of other products available in our online store. We supply circlips and housings for most sizes of bearing.
