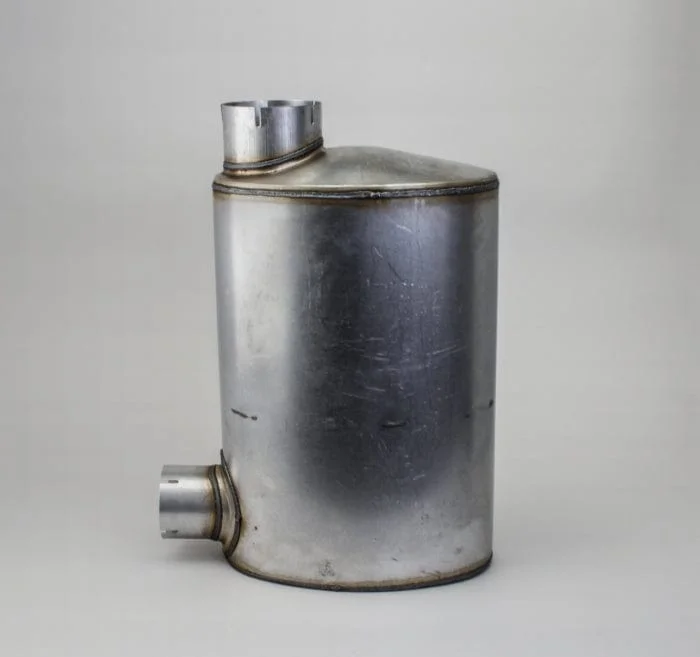

Muffler, Oval Style 3 – Donaldson M120566

Original price was: £552.05.Current price is: £110.41.

In the unlikely event of a delivery delay exceeding 10 working days. would you accept an alternative brand equivalent? (If no. we will contact you in the event of an unexpected delay):

SKU: 8713280192860 Category:

Description

Donaldson M120566

Muffler, Oval Style 3

Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 5.02 inch (127.63 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 20.75 inch (527 mm)
Overall Length 25.25 inch (641.4 mm)
Rated Flow LR 1271 cfm (36 m³/min)
Rated Flow MR 1798 cfm (50.9 m³/min)
Rated Flow HR 2204 cfm (62.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 17 dBA
Inlet Clock Position 3:00
Outlet Clock Position 3:00
Style Style 3
