Wagner Tuning Audi RS6 C6 4F Competition Intercooler Kit

Description

Wagner Tuning Audi RS6 C6 4F Competition Intercooler Kit

The Wagner Tuning Competition Intercooler Kit is a direct upgrade for the Audi RS6 C6 4F (426kW/580PS, 2008-2010), designed to keep the twin-turbo 5.0 V10 running cooler and more consistently under hard use. By replacing the restrictive factory intercoolers with a much larger, more efficient core design, the kit reduces intake air temperatures and helps maintain power during sustained driving, track sessions, or in warmer climates.

Why upgrade the intercooler?

The original RS6 intercoolers can struggle to keep up once the engine is worked hard, leading to heat soak (where the cooler itself becomes saturated with heat and can no longer cool effectively). When that happens, intake temperatures rise, the ECU pulls timing, and power drops. A larger, more efficient core like this one keeps the charge air cooler for longer, so the engine can deliver its full output more consistently.

Engineering and design

Wagner Tuning use a competition-grade tube fin core paired with their newly developed HD-Fin internal insert, which improves heat transfer from the charge air to the cooler’s surface. The cast aluminium end tanks are developed in CAD and refined using CFD (computer airflow simulation), giving smooth internal flow and minimal back pressure – meaning the turbos do not have to work harder to push air through.

The core is finished with an anti-corrosion coating that has good thermal conductivity, so it protects the cooler from road salt, moisture and debris without compromising its ability to shed heat.

Core dimensions and capacity

The stepped core measures 283mm x 225mm x 90mm plus 283mm x 193mm x 55mm, fitting within the available space while delivering a significant 79% increase in internal volume over the factory unit.

Key benefits

• Lower and more stable intake air temperatures under load
• 79% larger internal core volume than OEM
• Optimised internal airflow for minimal pressure drop
• OEM-matched inlet and outlet diameters for direct fitment
• True plug and play installation using factory mounting points

Fitment and installation

The kit installs onto the original mounting points and connects to the existing air ducting, making it a plug and play upgrade. The factory auxiliary water coolers are replaced by the upgraded water cooler supplied in the kit. This kit is specifically designed for the Audi RS6 C6 4F 426kW/580PS (2008-2010). Please use the vehicle lookup or check the Vehicle Fitment tab to confirm compatibility with your car.

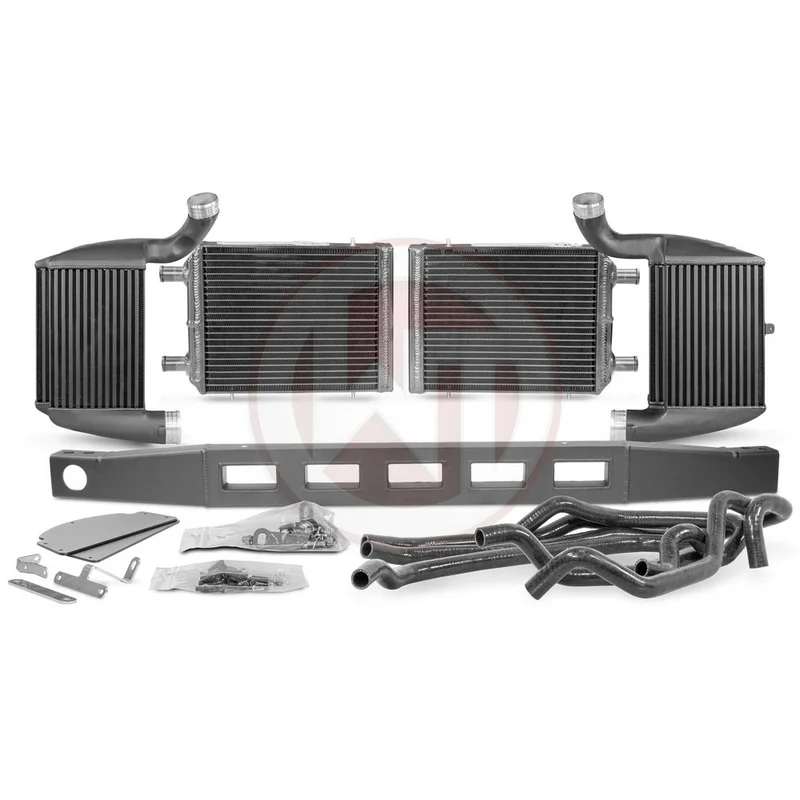

What’s in the kit

• 2 x intercoolers, black coated (left and right)
• 1 x water cooler, black coated
• 1 x crossbeam, black coated
• 4 x water hoses
• Mounting hardware
• Installation instructions

Part number: 200001146

For RS6 C6 owners running stock, tuned, or fully built setups, this Wagner Tuning Competition Intercooler Kit is one of the most worthwhile cooling upgrades you can fit – addressing a known weak point and giving the V10 the thermal headroom it deserves.
